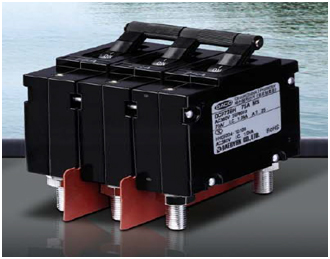

CIRCUIT PROTECTOR

SPECIALTY ELECTRICAL PROTECTION SUPPLIER

Proven by international certifications acquired, circuit protector offers wide range of model, circuit construction and different attachment styles of terminals.

Applying to common use of AC & DC, it makes work more convenient.
Diversifying type of terminal structure of screw, side screw, plug-in, bolt & clip.
Panel & DIN rail mounting available
User friendly circuits diversified by series, auxiliary switch, alarm switch, normal switch, parallel and relay

Model

Rated current(A)

Features

Application

1	DCP 30PRS/SSR/PPR	0.3, 0.5, 0.75, 1, 2, 3, 4, 5, 7, 10, 15, 20, 25, 30	Diverse terminal types available Inrush current protection	Telecom equipment, power supply, medical equipment
2	DCP 30PS/SS/TS	0.3, 0.5, 0.75, 1, 2, 3, 4, 5, 7, 10, 15, 20, 25, 30	16.2 mm of super slim thickness pole 2P/3P with optional N/H handle	Telecom equipment, power supply, medical equipment, vending machine
3	DCP 30PA. PP	0.3, 0.5, 0.75, 1, 2, 3, 4, 5, 7, 10, 15, 20, 25, 30	Terminal inserted to PCB Easy on/off toggle lever	Traffic signal controller, FA, OA equipment, Electronic switching system
4	DCP 30PR.SR/50PR.SR.TR	0.3, 0.5, 0.75, 1, 2, 3, 4, 5, 7, 10, 15, 20, 25, 30 (40, 45, 50)	Din rail mounting socket Easy on/off toggle lever 2p/3p N/H handle	Telecom equipment, power supply, medical equipment, control panel
5	DCP 50DF.DG	0.3, 0.5, 0.75, 1, 2, 3, 4, 5, 7, 10, 15, 20, 25, 30, 40, 45, 50	DIN rail & panel mounted	Machine tool, industrial machine
6	DCP 50DR	0.3, 0.5, 0.75, 1, 2, 3, 4, 5, 7, 10, 15, 20, 25, 30	Minimum size & thickness Vibration withstanding on/off structure	Machine tool, industrial machine
7	DCP 50BH.CH.BU	0.3, 0.5, 0.75, 1, 2, 3, 4, 5, 7, 10, 15, 20, 25, 30, 40, 45, 50	Easy display of on/off using toggle lever Clip type terminal	Office equipment, power supply, robots,sound system, electronic switching system
8	DCP 50SH/TH	0.3, 0.5, 0.75, 1, 2, 3, 4, 5, 7, 10, 15, 20, 25, 30, 40, 45, 50	Easy standardization Bus bar work can be implemented	Office equipment, power supply, robots, sound system, electronic switching system
9	DCP 70BH	60, 75, 100	Bolt terminal	Computer peripheral, machine tool
10	DCP 70SH/TH	60, 75	Easy standardization Bus bar work can be implemented	Switchboard equipment, robots, sound system, inverter
11	DCP 70PH	0.3, 0.5, 0.75, 1, 2, 3, 4, 5, 7, 10, 15, 20, 25, 30, 40, 45, 50, 60, 75, 100	Reduced time for assembling Saving time to replace	Telecomm equipment, computers, robots, sound system
12	DCP 100H	0.3, 0.5, 0.75, 1, 2, 3, 4, 5, 7, 10, 15, 20, 25, 30, 40, 45, 50, 60, 75, 100	Reduced time for assembling Saving time to replace	Telecomm equipment, computers, robots, sound system
13	DCP 101B/101P	60, 75, 100	Easy to display on/off with toggle lever	Electronics switching system, broadcasting equipment, super computer, Transportation equipment
14	DCP 250B	100, 125, 150, 175, 200, 225, 250	Toggle lever	Transportation equipment – elevator, conveyor, crane
15	DCP 21H1	0.3, 0.5, 1, 2, 3, 5, 8, 10, 15	High reliability 16 mm mounting Excellent design	OA equipment, measuring instruments, industrial machine
